Rotary Table Washers

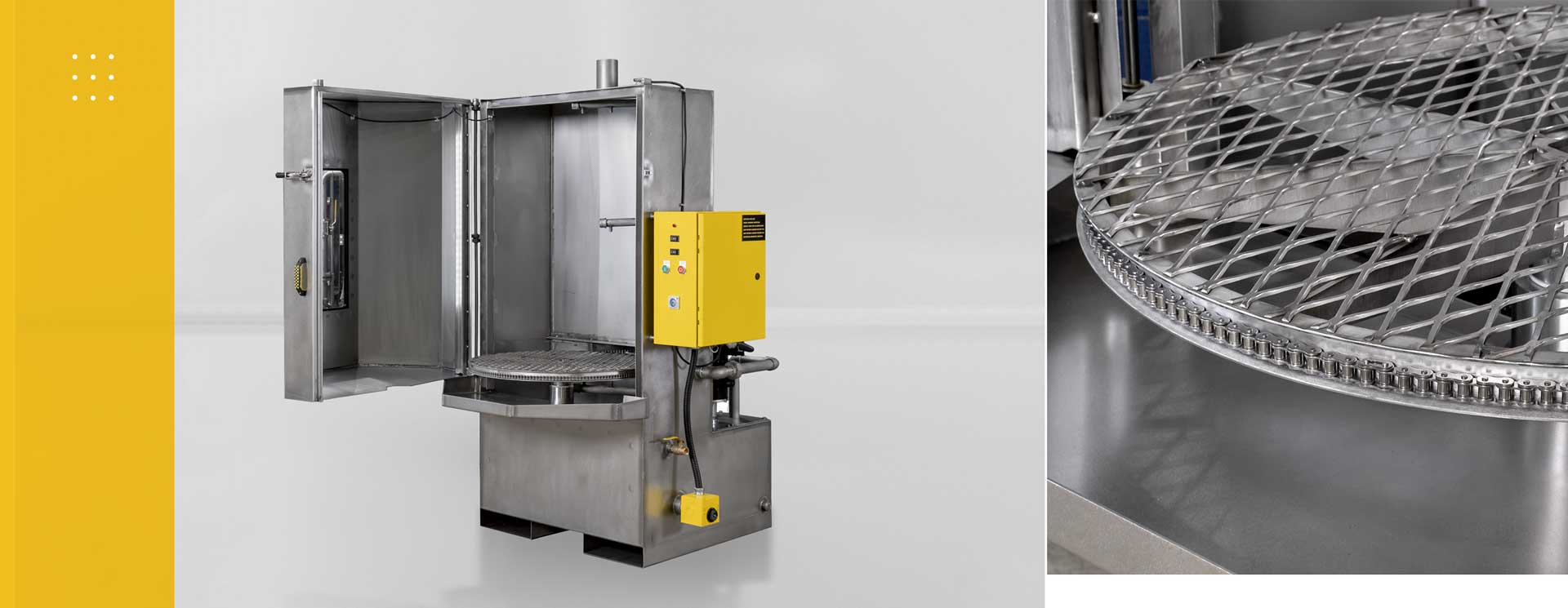

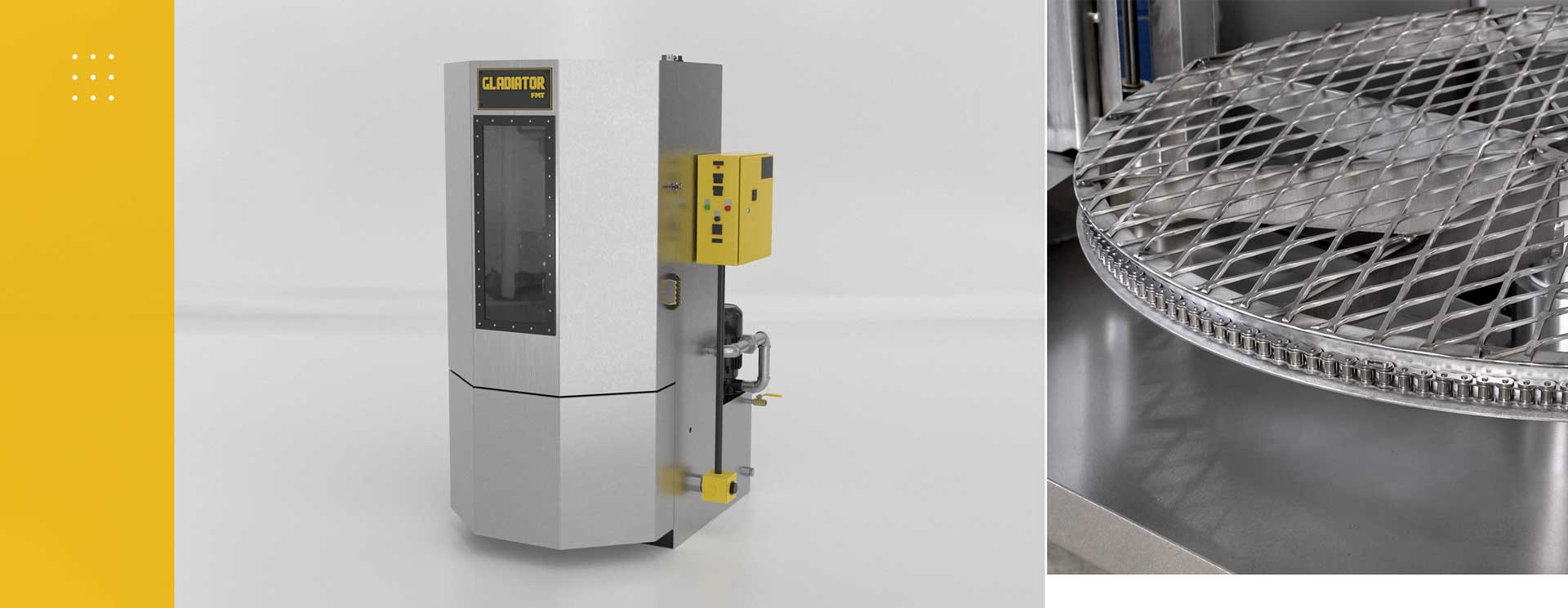

The Gladiator FRT
The Gladiator FRT rotary table washers are a trusted workhorse. Built tough for demanding jobs, the Gladiator FRT is ready to tackle your most demanding parts cleaning challenge and provide years of reliable service. Rotary table washers are best suited for low volume parts production, batch cleaning, processing multiple part sizes and geometries, and for large, heavy parts.
For More Technical Details
Download Product PDF
Standard Mechanics
- Stainless Steel Vertical Solution Pump
- Stainless Steel Screw Plug Heater
- Stainless Steel Perforated Debris Basket
- Oil Disk Skimmer w/ High Temperature Disk
- Industrial Duty Gearmotor
- Threaded Poly Spray Nozzles
- Swing-down Intermediate Spray Header
- 3/4" Brass Manual Fill Valve
- 1" Brass Drain Valve
Standard Electrical
- NEMA 12 Controls Enclosure
- Low Level Heater/Pump Protection
- Thermostatic Heater Control
- Door Safety Switch
- Wash Stage Timer
Options
- Automatic 7-Day/24-Hour Heater Timer
- Automatic Level Control
- Stainless Steel Bag Filter
- Stainless Steel Spray Nozzles
- Removable Parts Tree 6" Tall
- Stainless Steel Containment Ring
- 2nd Level Parts Basket
- Casters
- Viewing Window
- Stainless Steel Parts Washing Baskets:
- 17" x 8" x 8"
- 17" x 17" x 8"
- 20" x 20" x 8"
- 25" x 25" x 8"
Custom Baskets Available, Per Request
- Natural Gas/Propane Heat
- Steam Heat
- 240V 3PH, 480V 3PH (240 3PH Standard on 36" Table)
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|

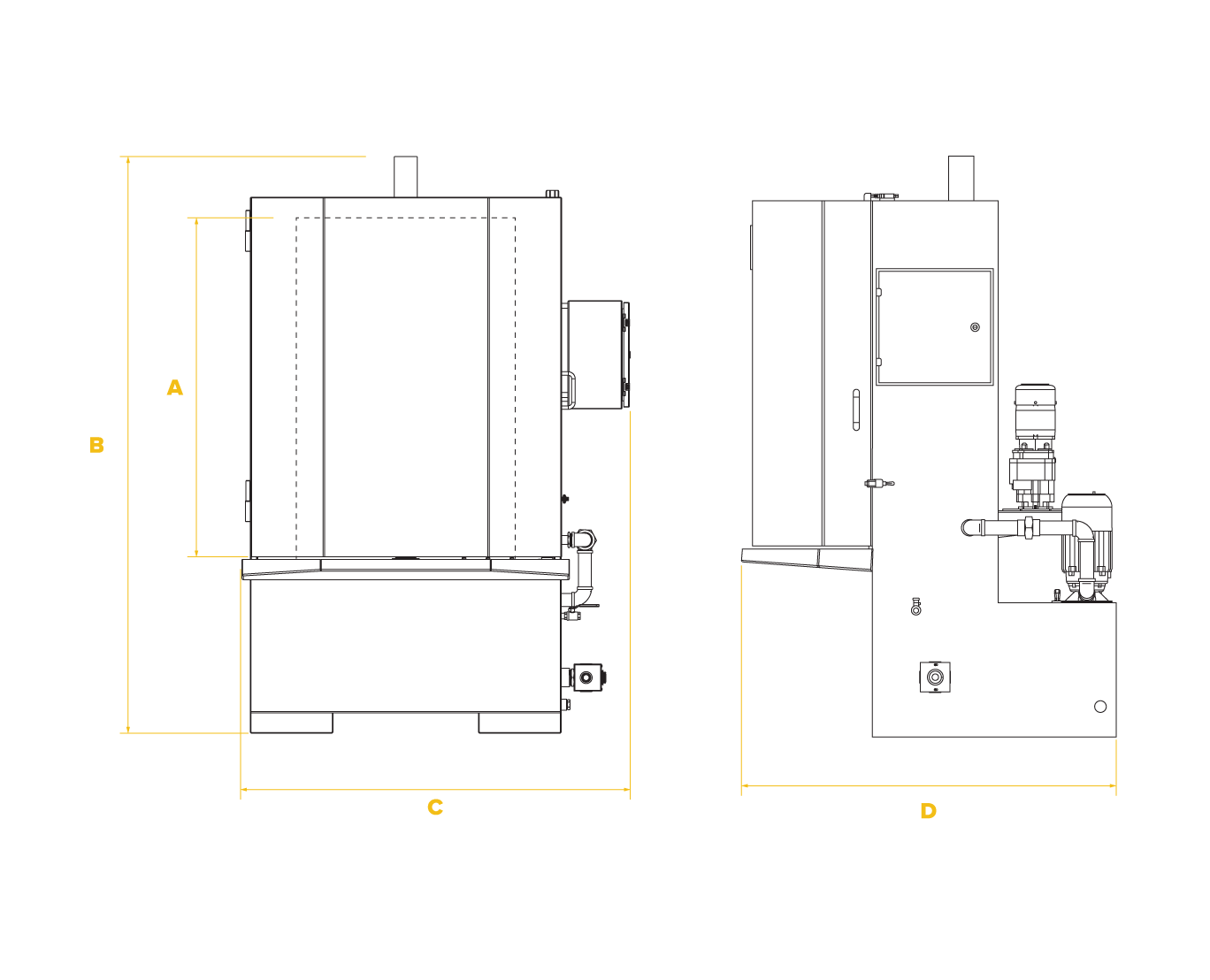

| Ref. | Dimension | 2430 | 3036 | 3048 | 3642 | 3650 |
| Table Diameter (in) | 24 | 30 | 30 | 36 | 36 | |
| A | Part Opening Height (in) | 30 | 36 | 48 | 42 | 50 |
| B | Height (in) | 6'-2" | 6'-8" | 7'-8" | 7'-2" | 7'-10" |
| C | Width (in) | 3'-8" | 4'-2" | 4'-2" | 4'-8" | 4'-8" |
| D | Depth (in) | 4'-0" | 4'-6" | 4'-6" | 5'-0" | 5'-0" |
